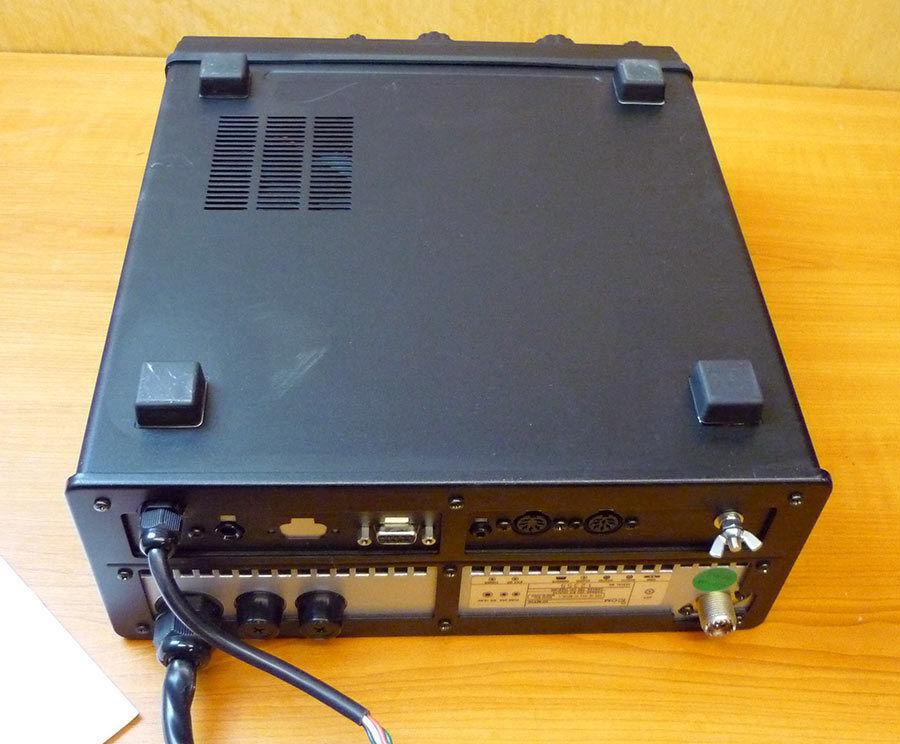

Icom IC-M710
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
TX: 1.6-27.5 MHz Marine channels (Ham bands possible)
RX: 0.5-30 MHz |
| Modes: |
All-mode |
| RF Power Output: |
Hi: 150 W, Mid: 60 W, Lo: 20 W (PEP) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 2.5-3 A
TX: Max 30 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
291*116.4*315 mm |
| Weight: |
7.9 Kg |
| Manufactured: |
19xx-20xx |
| Other: |
160 memories. Alpha-tags. Full QSK |
| Related Documents: |
User Manual (5.69 MB) |
 |
